Selected Pages from the Royce 1-640 Owner's Manual
Including the Schematic Diagram

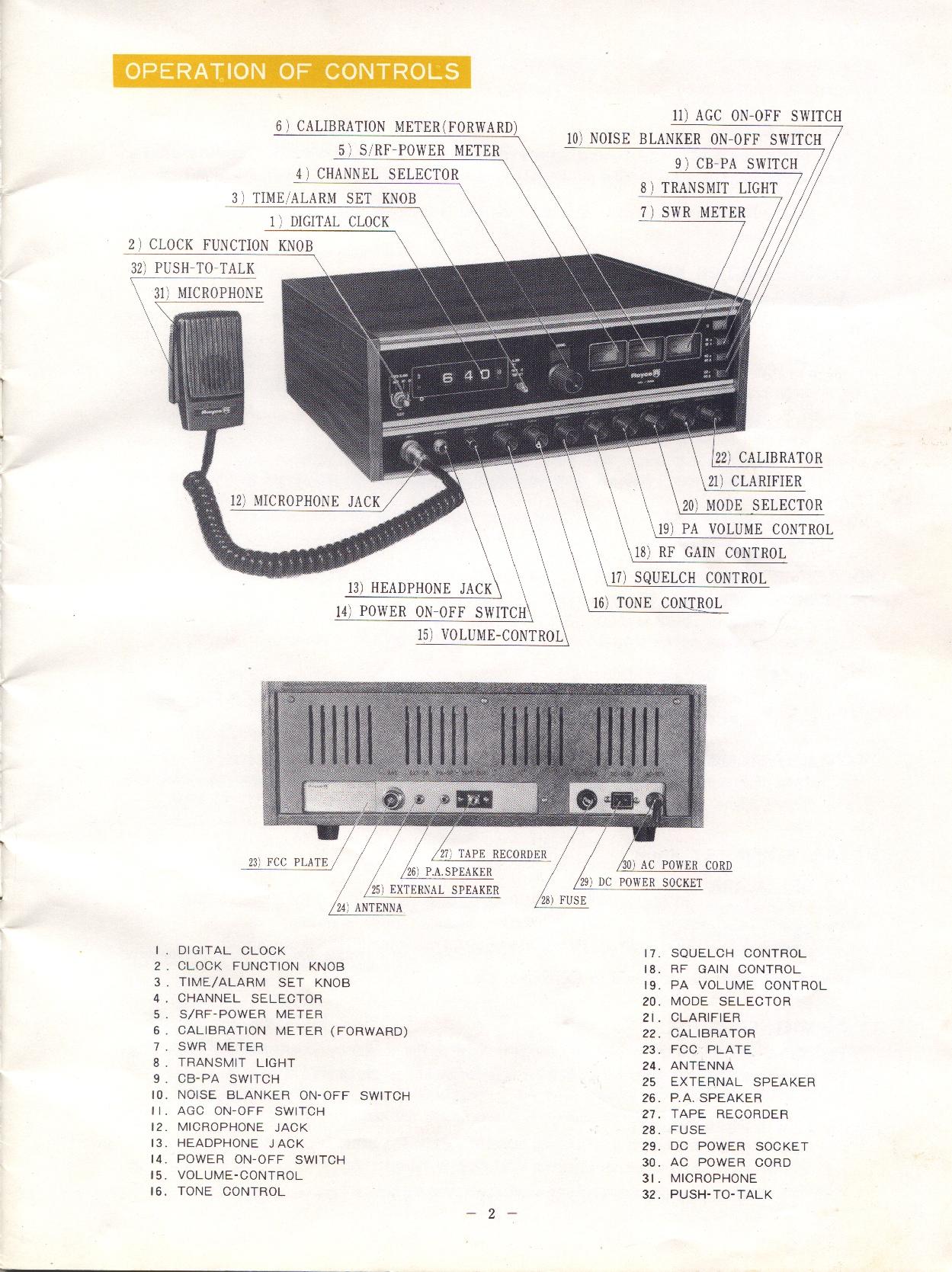

Royce 1-640 Basic Controls

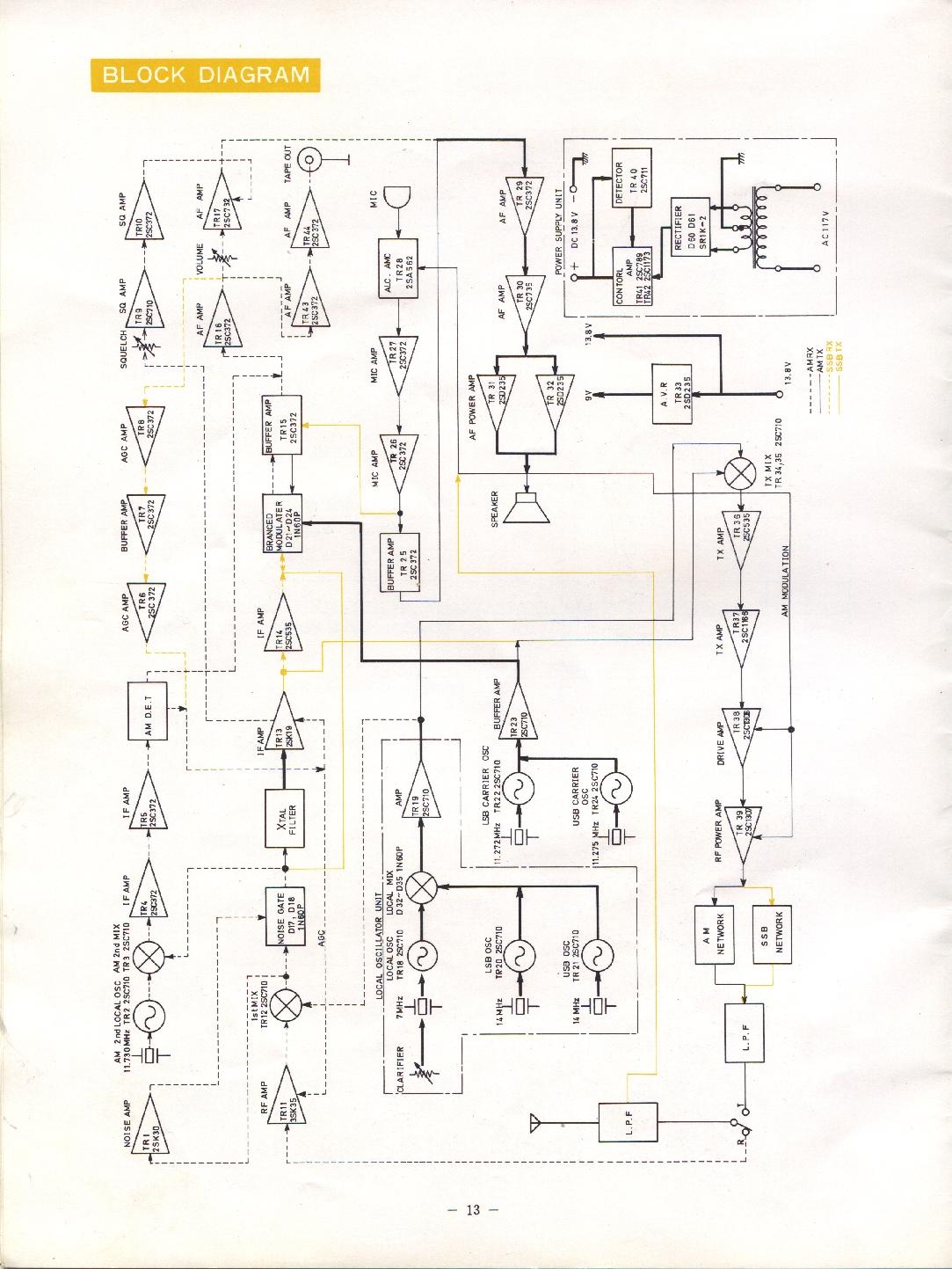

Royce 1-640 Block Diagram

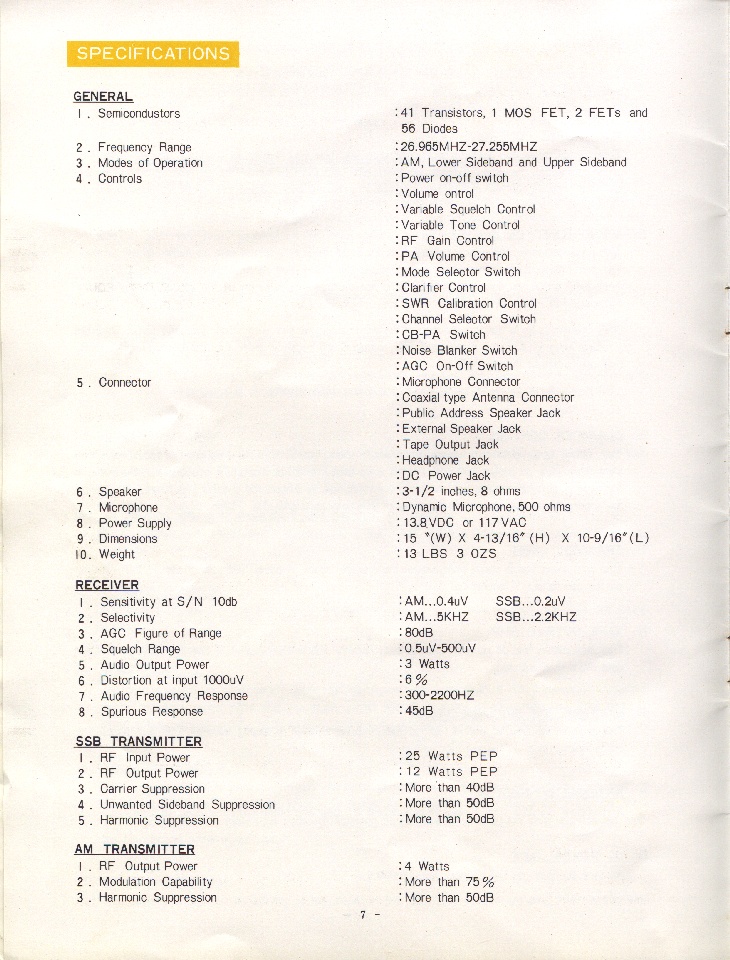

Royce 1-640 Specifications

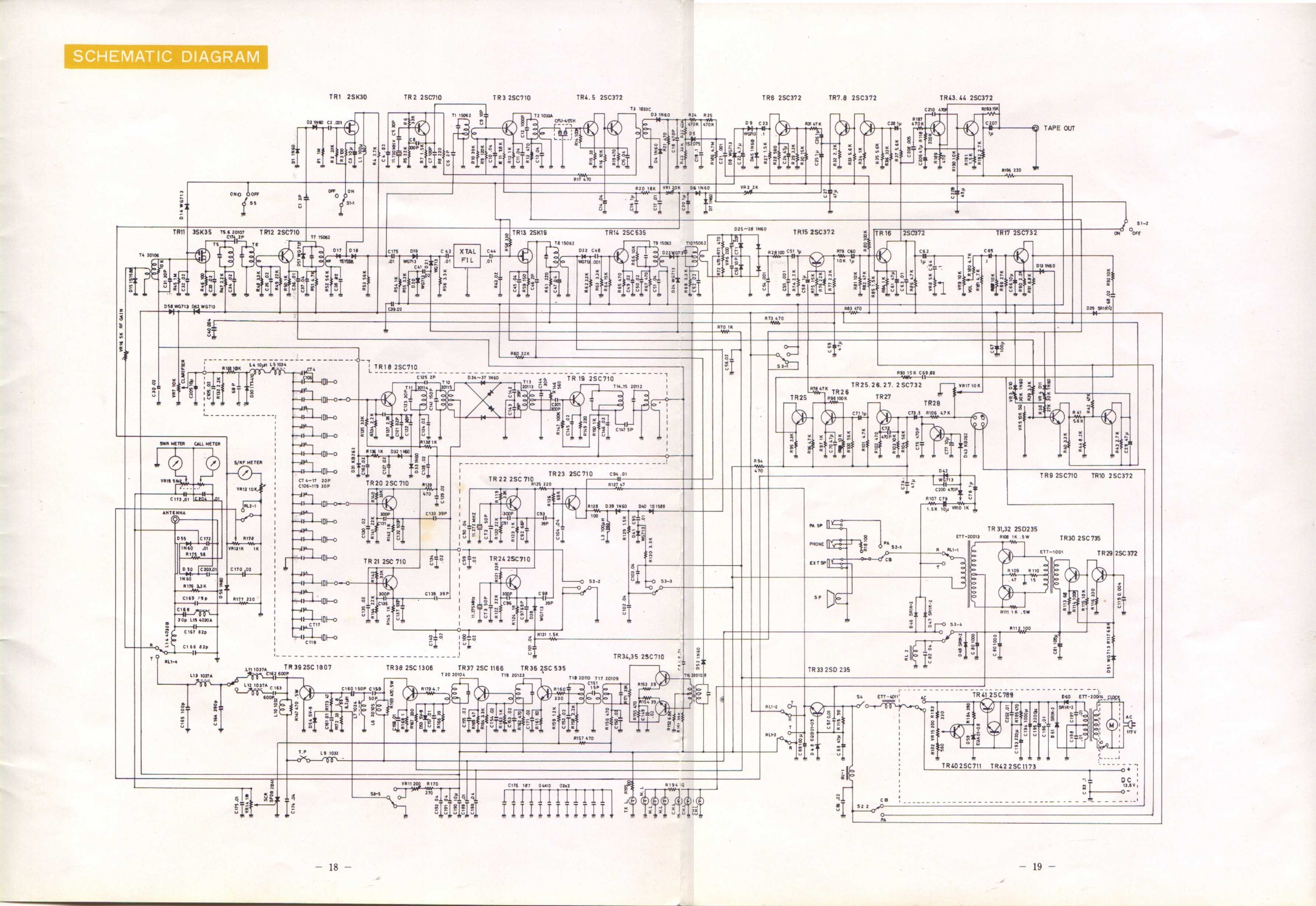

Royce 1-640 Schematic Diagram

Royce 1-640 Crystal Mixing Chart
